Kia PV5 Cargo Double Front Side Load Toolbox Hexaboard Van Racking

Kia PV5 Cargo Twin Front Side‑Load Hexaboard Toolbox Van Racks

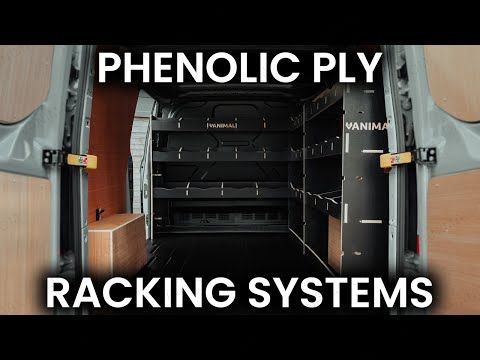

Vanimal van racking systems are designed and manufactured on-site in Leeming Bar, North Yorkshire, with shipping across the UK and Europe. Our Kia PV5 Cargo Hexaboard racking is built from heavy‑duty 12mm Phenolic plywood with a black textured Hexaboard finish, providing a strong, stable and highly durable construction. The external facias feature a hexagonal textured Phenolic coating on one side and a 120 g/m smooth Phenolic finish on the other.

This twin‑unit front racking setup includes both the NS Front and OS Front side‑load toolbox racks. Each unit is shaped to follow the contours of the Kia PV5 Cargo, fitting neatly on both sides of the front section of the van. These racks can be used as a complete front storage system or combined with rear racking modules for increased capacity.

Kia PV5 Cargo Hexaboard Van Racking Specifications

• External facias: Textured Hexaboard Phenolic & 120gm smooth Phenolic
• NS Front Side‑Load – Width 1000mm x Depth 395mm x Height 1190mm (4‑tier angled‑out toolbox shelves)
• OS Front Side‑Load – Width 1000mm x Depth 395mm x Height 1190mm (4‑tier angled‑out toolbox shelves)

NS & OS Front: Each unit features four angled‑out shelves designed for direct side‑door loading and unloading. Suitable for toolboxes such as Makita MakPac, DeWalt TSTAK/ToughSystem, Milwaukee Packout, and similar systems, as well as tools, parts, and equipment. Provides secure, organised storage with quick access from both side doors.

Full internal dimensions are available on the attached sheets or on request.

Some racks include pre‑cut notches for bungee cords, as shown in product images (bungees not included).

We recommend drilling 3mm pilot holes before screwing components together to prevent cracking on the smooth Phenolic facias.

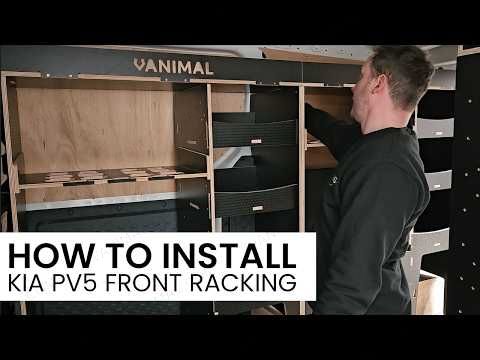

Assembly & Installation

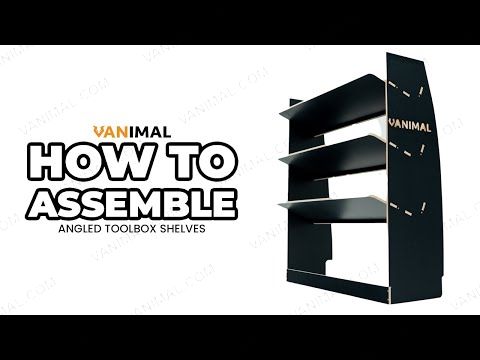

Supplied flat‑packed with all required fixings. Mortise‑and‑tenon joint design for quick assembly (10–30 minutes per module). Rubber mallet and optional wood glue not included. Despite the heavy‑duty 12mm Phenolic construction, the units remain lightweight enough to lift easily into the van for installation.

Important Notes

Vanimal racking is precision‑designed for specific van makes and models. If your van is ply‑lined, minor trimming of end panels may be required due to variations in lining thickness. Product descriptions and dimensions are accurate; some images may be illustrative and not to exact scale. Toolboxes shown in images are not included.

Built to Last – Made in Yorkshire

• FSC‑certified, sustainably sourced plywood
• Heavy‑duty 12mm Phenolic Hexaboard construction
• Rigorous quality control
• Assembly instructions included
• Buy direct from the manufacturer
• UK stock with fast dispatch
• 12‑month structural warranty
• Proudly made in Yorkshire

Fast, Tracked Delivery

Once your order leaves our production facility, you will receive a tracking code. Please ensure someone is available to sign for the delivery, or arrange a safe place in advance.
