Kia PV5 Cargo Double Rear and Bulkhead Hexaboard Van Racking

Kia PV5 Cargo Hexaboard Racking - Double Rear & Full‑Width Bulkhead

Vanimal van racking systems are designed and manufactured on-site in Leeming Bar, North Yorkshire, with shipping across the UK and Europe. Our Kia PV5 Cargo Hexaboard racking is built from heavy‑duty 12mm Phenolic plywood with a black textured Hexaboard finish, providing a strong, stable and highly durable construction. The external facias feature a hexagonal textured Phenolic coating on one side and a 120gm smooth Phenolic finish on the other.

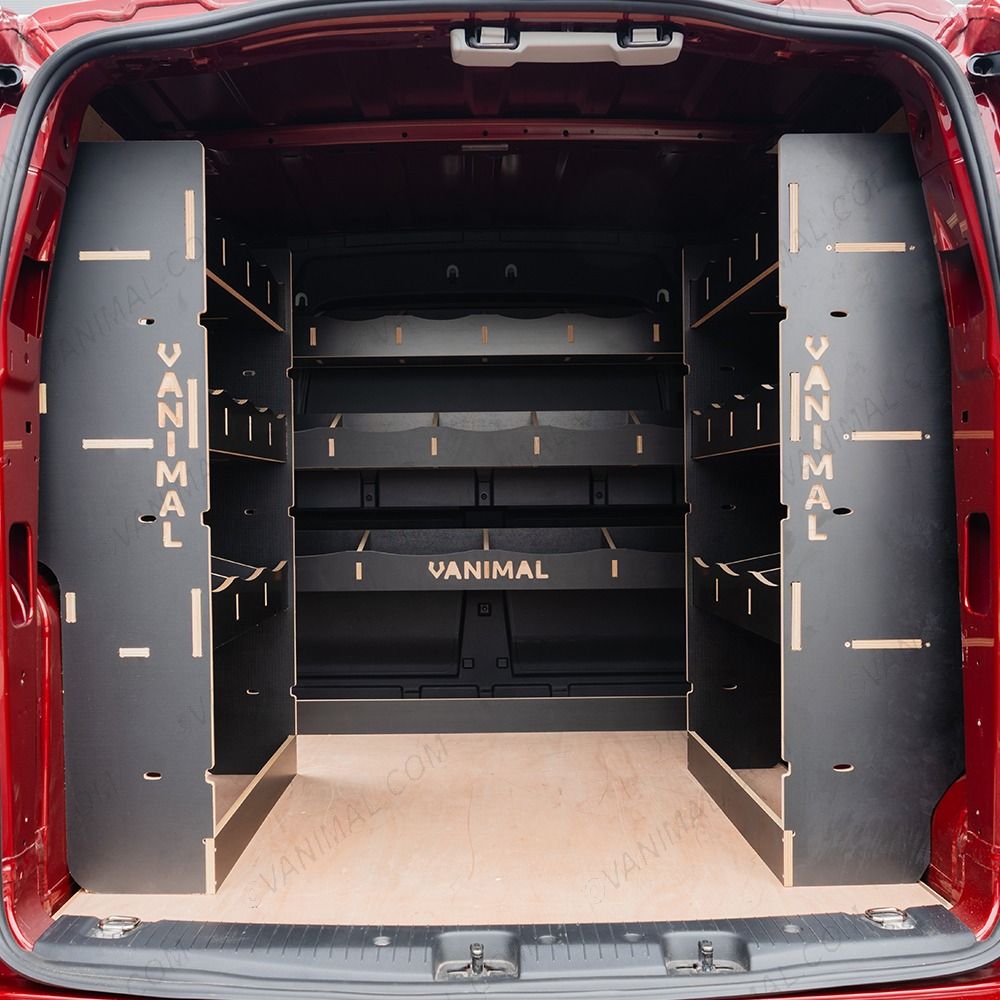

This triple‑unit racking kit includes the full‑width bulkhead rack along with both the NS Rear and OS Rear multi‑compartment units. Each module is shaped to follow the contours of the Kia PV5 Cargo SWB, fitting neatly against the bulkhead and over the wheel arches. With three multi‑tier racks and a total of 37 compartments, this setup provides extensive organised storage for tools, parts and loose cargo.

Kia PV5 Cargo Hexaboard Van Racking Specifications

• External facias: Textured Hexaboard Phenolic & 120gm smooth Phenolic
• Bulkhead – Width 1190mm x Depth 280mm x Height 1190mm (3‑tier shelves with 13 compartments)
• OS Rear – Width 970mm x Depth 435mm x Height 1190mm (3‑tier shelves with 12 compartments)
• NS Rear – Width 970mm x Depth 435mm x Height 1190mm (3‑tier shelves with 12 compartments)

Bulkhead: A full‑width, three‑tier shelving unit with 13 compartments, ideal for storing smaller tools, consumables and parts directly behind the seats.

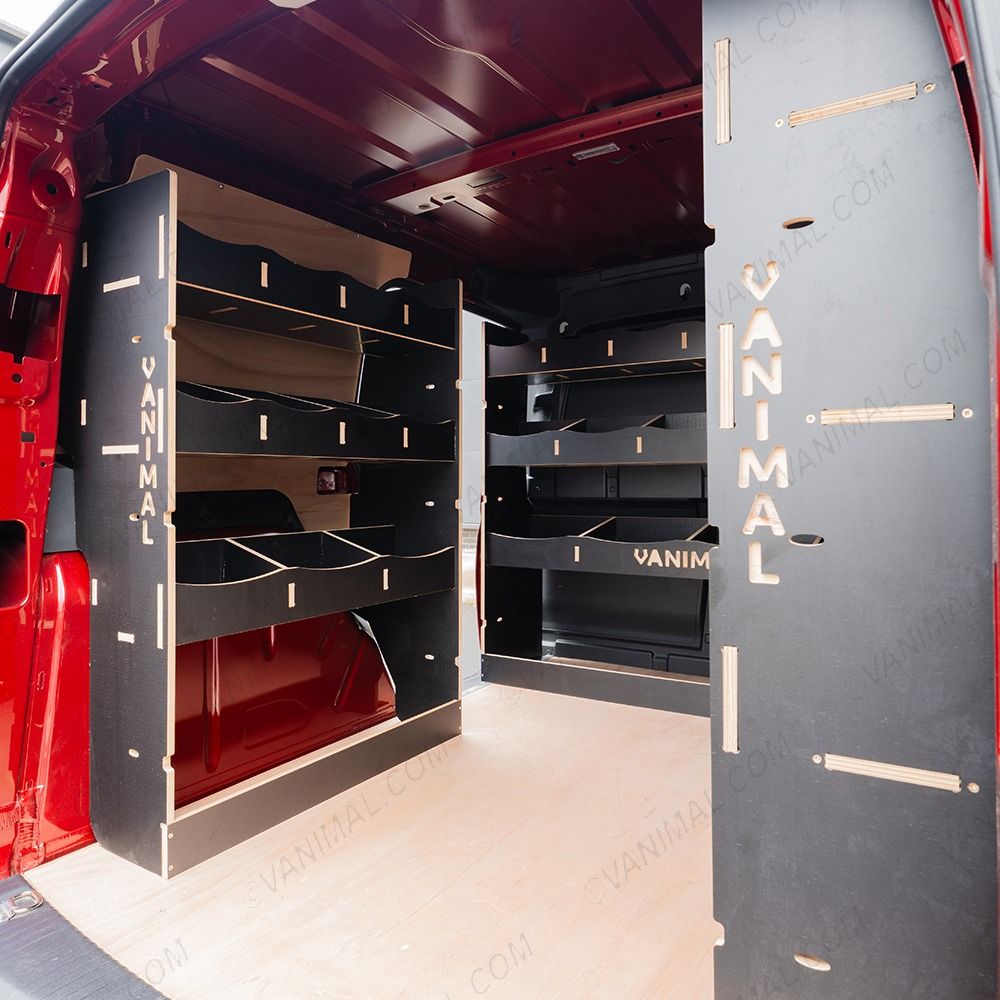

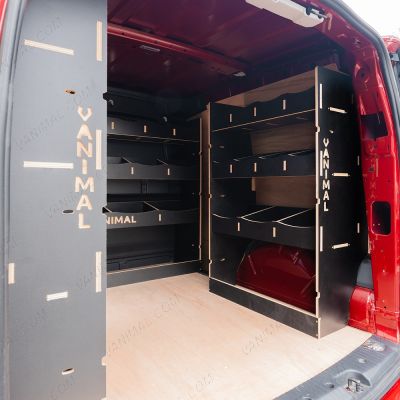

OS Rear & NS Rear: Matching three‑tier, 12‑compartment racks positioned over the wheel arches, providing secure and organised storage for tools, cargo and loose items.

Full internal dimensions are available on the attached sheets or on request.

Some racks include pre‑cut notches for bungee cords, as shown in product images (bungees not included).

We recommend drilling 3mm pilot holes before screwing components together to prevent cracking on the smooth Phenolic facias.

Assembly & Installation

Your Vanimal racking kit arrives flat‑packed for easier handling and transport. Each unit uses a mortise‑and‑tenon joint design for straightforward assembly in around 10–30 minutes per rack. Rubber mallet and optional wood glue are not included. Clear assembly instructions (and where available, video guides) are provided.

Tailored Fit for Your Van

Our racking is precision‑designed for specific van makes and models. If your van is ply‑lined, minor trimming of end panels may be required due to variations in lining thickness. Product descriptions and dimensions are accurate; some images may be illustrative and not to exact scale. Toolboxes shown in images are not included.

Built to Last – Made in Yorkshire

• FSC‑certified, sustainably sourced plywood
• Heavy‑duty 12mm Phenolic Hexaboard construction
• Rigorous quality control
• Assembly instructions included
• Buy direct from the manufacturer
• UK stock with fast dispatch
• 12‑month structural warranty
• Proudly made in Yorkshire

Fast, Tracked Delivery

Once your order leaves our production facility, you will receive a tracking code. Please ensure someone is available to sign for the delivery, or arrange a safe place in advance.
