Kia PV5 Cargo Double Rear Multi-Compartment Hexaboard Van Racking

Kia PV5 Cargo Hexaboard Racking – Double Rear Compartment

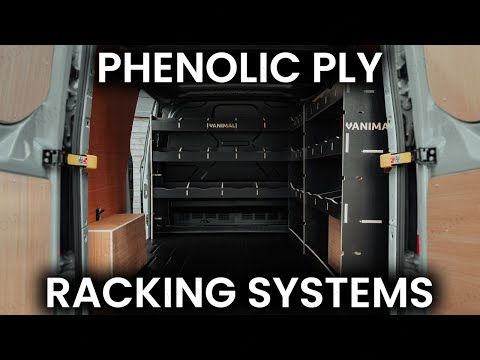

Vanimal van racking systems are designed and manufactured on-site in Leeming Bar, North Yorkshire, with shipping across the UK and Europe. Our Kia PV5 Cargo Hexaboard racking is built from heavy‑duty 12mm Phenolic plywood with a black textured Hexaboard finish, providing a strong, stable and highly durable construction. The external facias feature a hexagonal textured Phenolic coating on one side and a 120 g/m smooth Phenolic finish on the other.

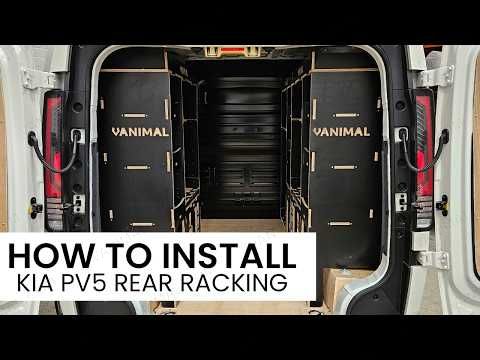

This double rear racking system includes both the NS Rear and OS Rear multi‑compartment units. Each rack features a three‑tier shelving layout with 12 compartments, providing extensive storage capacity at the rear of the van. Both units are shaped to follow the contours of the Kia PV5 Cargo, maximising space and ensuring a secure, tailored fit. Additional front racking modules can be added if more storage is required.

Kia PV5 Cargo Hexaboard Van Racking Specifications

• External facias: Textured Hexaboard Phenolic & 120gm smooth Phenolic
• NS Rear – Width 970mm x Depth 435mm x Height 1190mm (3‑tier shelves with 12 compartments)
• OS Rear – Width 970mm x Depth 435mm x Height 1190mm (3‑tier shelves with 12 compartments)

With two matching three‑tier racks and a total of 24 compartments, this double rear racking system provides generous storage for tools, parts, cargo and loose items, keeping everything organised and secure during transit.

Full internal dimensions are available on the attached sheets or on request.

Some racks include pre‑cut notches for bungee cords, as shown in product images (bungees not included).

We recommend drilling 3mm pilot holes before screwing components together to prevent cracking on the smooth Phenolic facias.

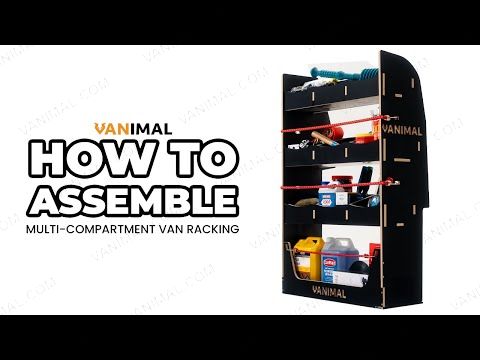

Assembly & Installation

Supplied flat‑packed with all required fixings. Mortise‑and‑tenon joint design for quick assembly (10–30 minutes per module). Rubber mallet and optional wood glue not included. Despite the heavy‑duty 12mm Phenolic construction, the units remain lightweight enough to lift easily into the van for installation.

Important Notes

Vanimal racking is precision‑designed for specific van makes and models. If your van is ply‑lined, minor trimming of end panels may be required due to variations in lining thickness. Product descriptions and dimensions are accurate; some images may be illustrative and not to exact scale. Toolboxes shown in images are not included.

Built to Last – Made in Yorkshire

• FSC‑certified, sustainably sourced plywood
• Heavy‑duty 12mm Phenolic Hexaboard construction
• Rigorous quality control
• Assembly instructions included
• Buy direct from the manufacturer
• UK stock with fast dispatch
• 12‑month structural warranty
• Proudly made in Yorkshire

Fast, Tracked Delivery

Once your order leaves our production facility, you will receive a tracking code. Please ensure someone is available to sign for the delivery, or arrange a safe place in advance.
