Kia PV5 Cargo Triple Hexaboard Van Racking System

Kia PV5 Cargo Hexaboard Triple Van Racking – OS Front & Double Rear

Vanimal van racking systems are designed and manufactured on-site in Leeming Bar, North Yorkshire, with shipping across the UK and Europe. Our Kia PV5 Cargo Hexaboard racking is built from heavy‑duty 12mm Phenolic plywood with a black textured Hexaboard finish, providing a strong, stable and highly durable construction. The external facias feature a hexagonal textured Phenolic coating on one side and a 120 g/m smooth Phenolic finish on the other.

This triple pack combines the OS Front compartment rack with both NS Rear and OS Rear multi‑compartment units, creating a full‑length storage solution down the driver’s side and across the rear of the van. Each rack is shaped to follow the contours of the Kia PV5 Cargo, maximising space and providing a tailored, secure fit. With three units and a total of 36 compartments, you can organise tools, parts and equipment exactly how you need them.

Kia PV5 Cargo Hexaboard Van Racking Specifications

• External facias: Textured Hexaboard Phenolic & 120gm smooth Phenolic
• OS Front – Width 1000mm x Depth 395mm x Height 1190mm (3‑tier shelves with 12 compartments)
• OS Rear – Width 970mm x Depth 435mm x Height 1190mm (3‑tier shelves with 12 compartments)
• NS Rear – Width 970mm x Depth 435mm x Height 1190mm (3‑tier shelves with 12 compartments)

OS Front: Three‑tier shelving with 12 compartments, ideal for smaller tools, parts and consumables, with open space beneath for bulkier items.

OS Rear & NS Rear: Matching three‑tier, 12‑compartment racks at the rear, providing extensive organised storage for tools, cargo and loose items, keeping everything secure while on the move.

Full internal dimensions are available on the attached sheets or on request.

Some racks include pre‑cut notches for bungee cords, as shown in product images (bungees not included).

We recommend drilling 3mm pilot holes before screwing components together to prevent cracking on the smooth Phenolic facias.

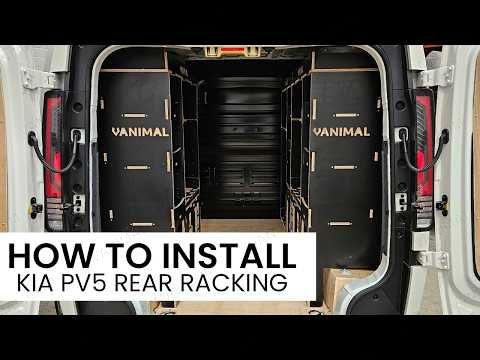

Assembly & Installation

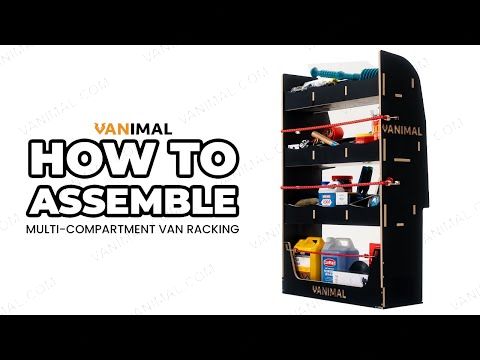

Your Vanimal racking kit arrives flat‑packed for easier handling and transport. Each unit uses a mortise‑and‑tenon node design for straightforward assembly in around 10–30 minutes per rack. Rubber mallet and optional wood glue are not included. Clear assembly instructions (and where available, video guides) are provided.

Tailored Fit for Your Van

Our racking is precision‑designed for specific van makes and models. If your van is ply‑lined, minor trimming of end panels may be required due to variations in lining thickness. Product descriptions and dimensions are accurate; some images may be illustrative and not to exact scale. Toolboxes shown in images are not included.

Built to Last – Made in Yorkshire

• FSC‑certified, sustainably sourced plywood
• Heavy‑duty 12mm Phenolic Hexaboard construction
• Rigorous quality control
• Assembly instructions included
• Buy direct from the manufacturer
• UK stock with fast dispatch
• 12‑month structural warranty
• Proudly made in Yorkshire

Fast, Tracked Delivery

Once your order leaves our production facility, you will receive a tracking code. Please ensure someone is available to sign for the delivery, or arrange a safe place in advance.
